Baby Felt
Calander
Machine

Gayatri Industrial Engineers' Baby Felt Calander Machine delivers superior glazing, smoothing and surface finishing for pure cotton, blended fabrics and wool — combining a precision 19″ mirror-finish main cylinder, adjustable pressure rolls and inverter drive for consistent, vibration-free production efficiency.

Get Quotation

Key Features

Built for Excellence

19″ Mirror-Finish Main Cylinder

The main cylinder fabricated at 19″ diameter is properly ground and mirror-finished, running on heavy-duty ball bearings with steam inlet and outlet — delivering flawless, uniform glazing and surface finishing across the full fabric width.

Adjustable Pressure Roll System

Two 190 mm dia. pressure rolls with steam flats and a worm & worm gear adjustable pressing system allow precise, controlled nip pressure — accommodating the full range of fabric weights from light cotton to heavy wool blends.

Creaseless Fabric Feeding

A swivel tension adjuster, tension binders and a dedicated ebonite scroll roll feed the cloth in a perfectly creaseless manner — ensuring a pristine, distortion-free surface before the fabric contacts the main cylinder and felt.

Inverter Drive & Box Plaiter

A 3 H.P. A.C. motor with reduction gearbox and inverter drive powers the main cylinder, while a synchronized heavy-duty box-type plaiter with draw roll delivers the finished fabric smoothly at production speeds up to 1000 m/hr.

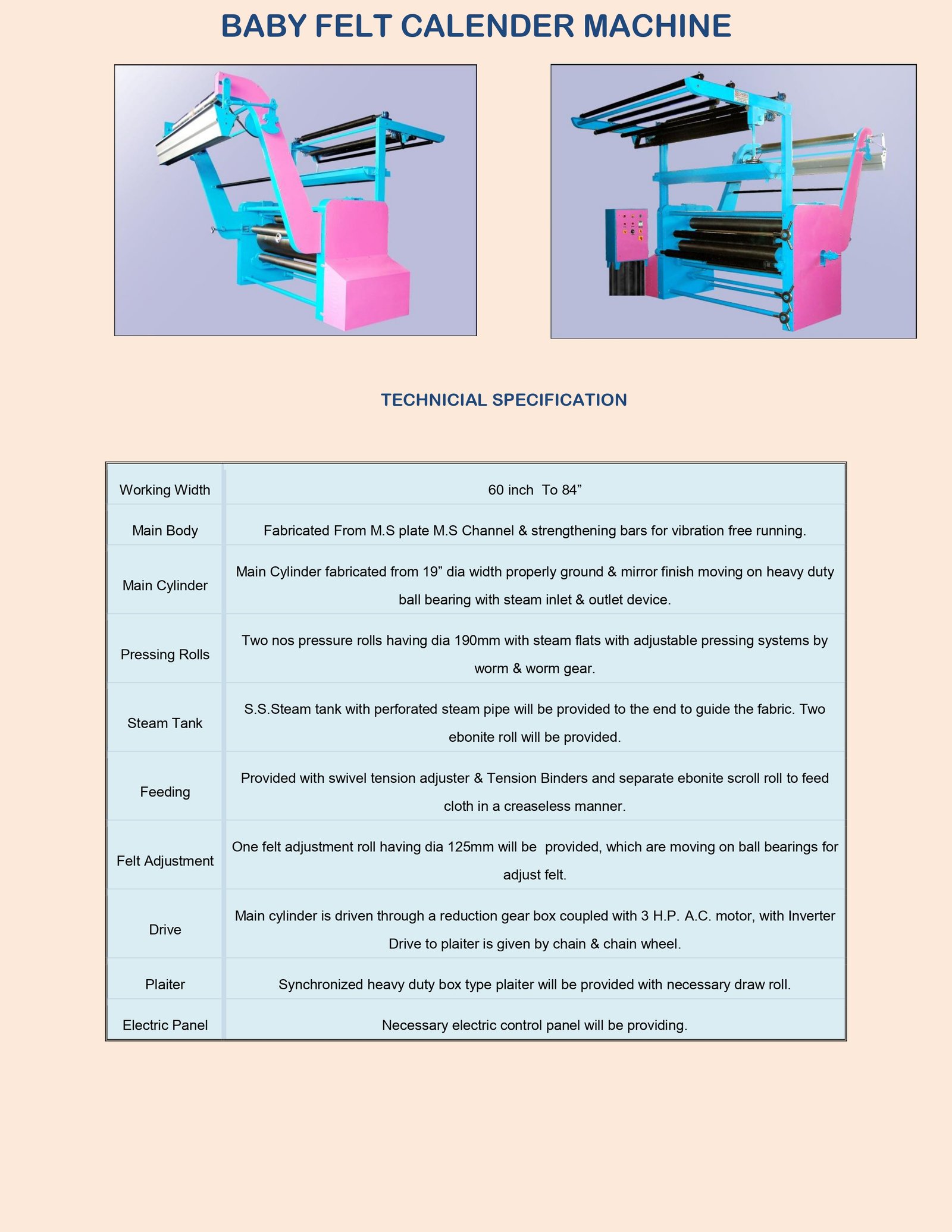

Technical Specifications

Salient Features

Working Width: 60″ to 84″ — accommodating a wide range of fabric widths for both standard and wide-format textile finishing requirements.
Main Body: Fabricated from M.S. plate, M.S. channel and strengthening bars — rigidly constructed for vibration-free running under continuous production conditions.
Main Cylinder: Fabricated at 19″ dia., properly ground and mirror-finished, running on heavy-duty ball bearings. Fitted with steam inlet and outlet device for precise heating throughout the cylinder surface.
Pressing Rolls: Two nos. pressure rolls of 190 mm dia. with steam flats. Adjustable pressing system operated by worm & worm gear for fine, repeatable nip-pressure control across all fabric weights.
Steam Tank: S.S. steam tank with perforated steam pipe fitted at the end to guide the fabric into the machine. Two ebonite rolls provided for smooth fabric entry.
Fabric Feeding: Equipped with swivel tension adjuster, tension binders and a separate ebonite scroll roll — feeding cloth in a perfectly creaseless manner to protect delicate fabric surfaces before calandering.
Felt Adjustment Roll: One felt adjustment roll of 125 mm dia. on ball bearings — providing accurate felt tracking and tension adjustment for consistent felt contact and even surface finishing results.
Drive: Main cylinder driven through a reduction gearbox coupled with a 3 H.P. A.C. motor with inverter drive. Plaiter is driven by chain and chain wheel — all synchronized for smooth, constant-speed operation.
Plaiter: Synchronized heavy-duty box-type plaiter provided with necessary draw roll — delivering the finished fabric in neat, consistent folds at production speeds up to 1000 m/hr.
Electric Panel: A complete electric control panel is provided — housing all controls for motor, inverter drive, steam temperature and machine speed for safe, easy and centralized operation.

Precision
Engineering

Key Technical Data

Working Width

60″ to 84″

Main Cylinder Dia.

19″ Mirror Finish

Pressure Roll Dia.

190 mm (× 2 nos.)

Production Capacity

Up to 1000 m / hr

Main Drive Motor

3 H.P. A.C. Motor

Power Consumption

20 HP

Technical Diagrams

Internal Mechanisms

Outstanding Advantages

Why Choose
Our Machine?

Gayatri's Baby Felt Calander Machine combines robust M.S. frame construction, precision felt engineering and inverter-drive technology to deliver excellent glazing, smoothing and finishing results for pure cotton, blended fabrics and wool — with minimal maintenance and maximum production efficiency.

Engineering Advantages

01

Vibration-Free M.S. Frame ConstructionThe main body fabricated from M.S. plate, M.S. channel and strengthening bars delivers a rigid, vibration-free structure — providing stable, consistent performance throughout continuous production runs.
02

Flawless Mirror-Finish CylinderThe 19″ dia. main cylinder, precisely ground and mirror-finished, on heavy-duty ball bearings with steam inlet/outlet, delivers a consistently superior glaze and smoothness across the full working width from 60″ to 84″.
03

Precise Worm & Worm Gear Pressure ControlTwo 190 mm dia. pressure rolls with steam flats and worm & worm gear adjustable pressing allow fine, repeatable nip-pressure setting — ensuring perfect finishing results across the full range of fabric weights and types.
04

Creaseless Fabric EntryThe swivel tension adjuster, tension binders and ebonite scroll roll feed fabric in a perfectly creaseless manner — protecting delicate fabric surfaces before they contact the main cylinder and felt for a premium finish.
05

S.S. Steam Tank with Ebonite RollsThe stainless steel steam tank with perforated steam pipe and two ebonite guide rolls conditions the fabric smoothly and evenly at the entry end — ensuring it enters the calander at the correct temperature and tension.
06

Accurate Felt Adjustment SystemA dedicated 125 mm dia. felt adjustment roll on ball bearings maintains precise felt tracking and uniform tension — guaranteeing consistent felt-to-fabric contact and even surface finishing results across every production run.
07

Inverter Drive — Smooth Variable SpeedThe 3 H.P. A.C. motor with reduction gearbox and inverter drive provides smooth, infinitely variable speed control — enabling production of up to 1000 m/hr while adapting gently to different fabric sensitivities.
08

Synchronized Heavy-Duty Box PlaiterThe chain-driven, synchronized box-type plaiter with draw roll delivers neatly folded finished fabric without tension or damage — completing a fully integrated entry-to-delivery system for high-efficiency finishing lines.
