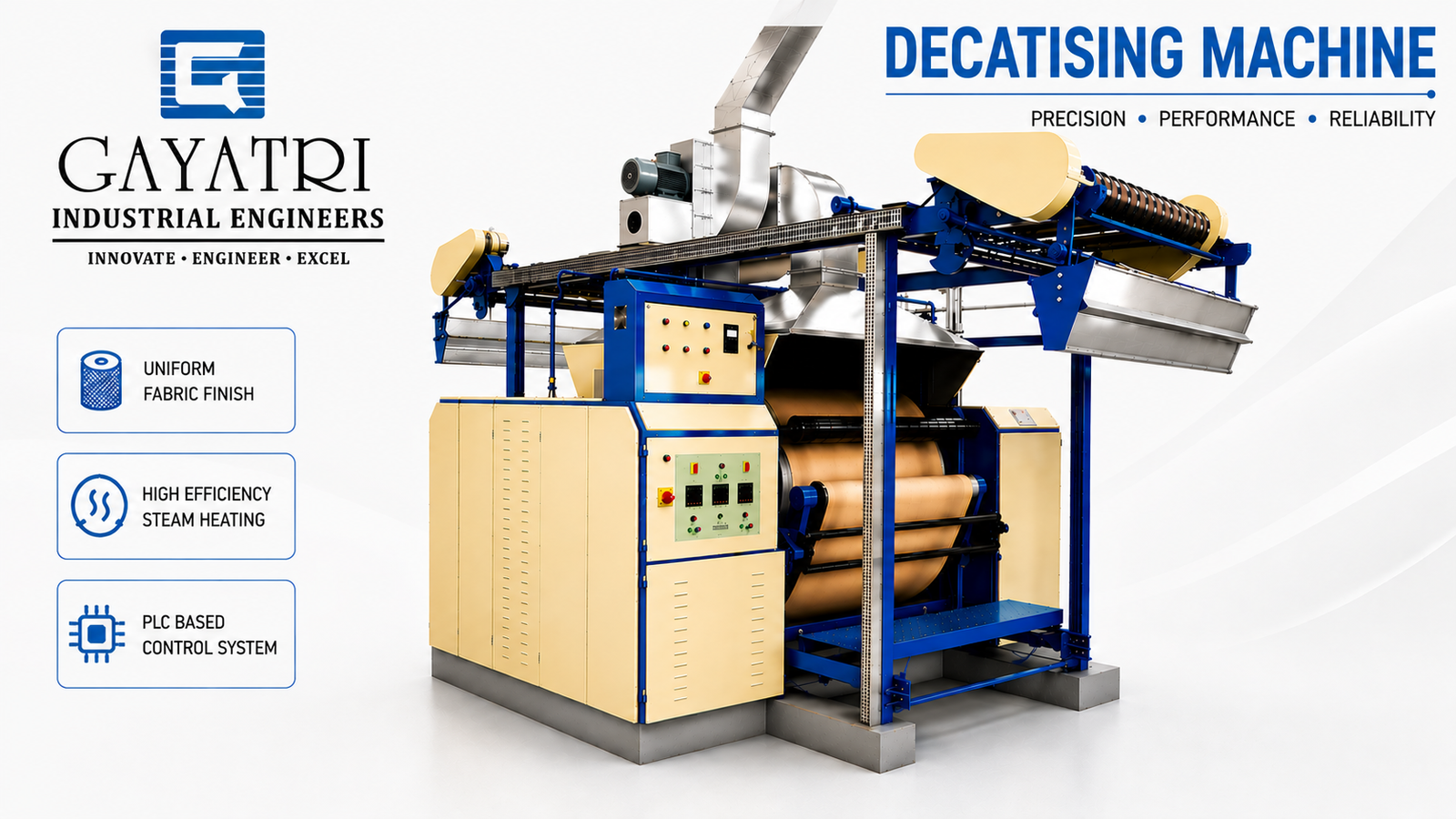

Front View

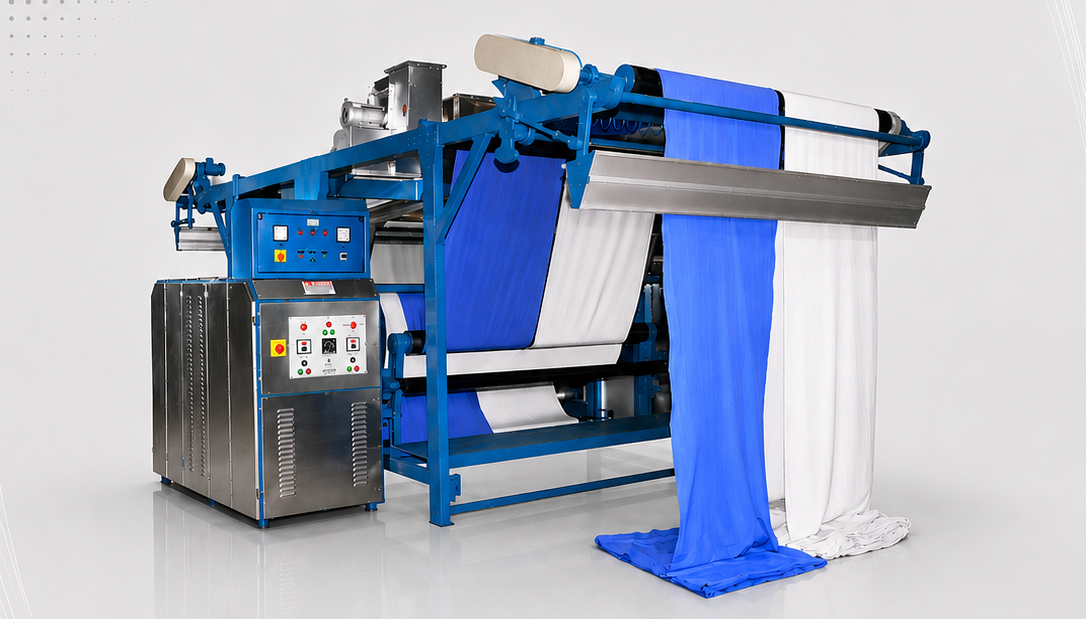

Side View

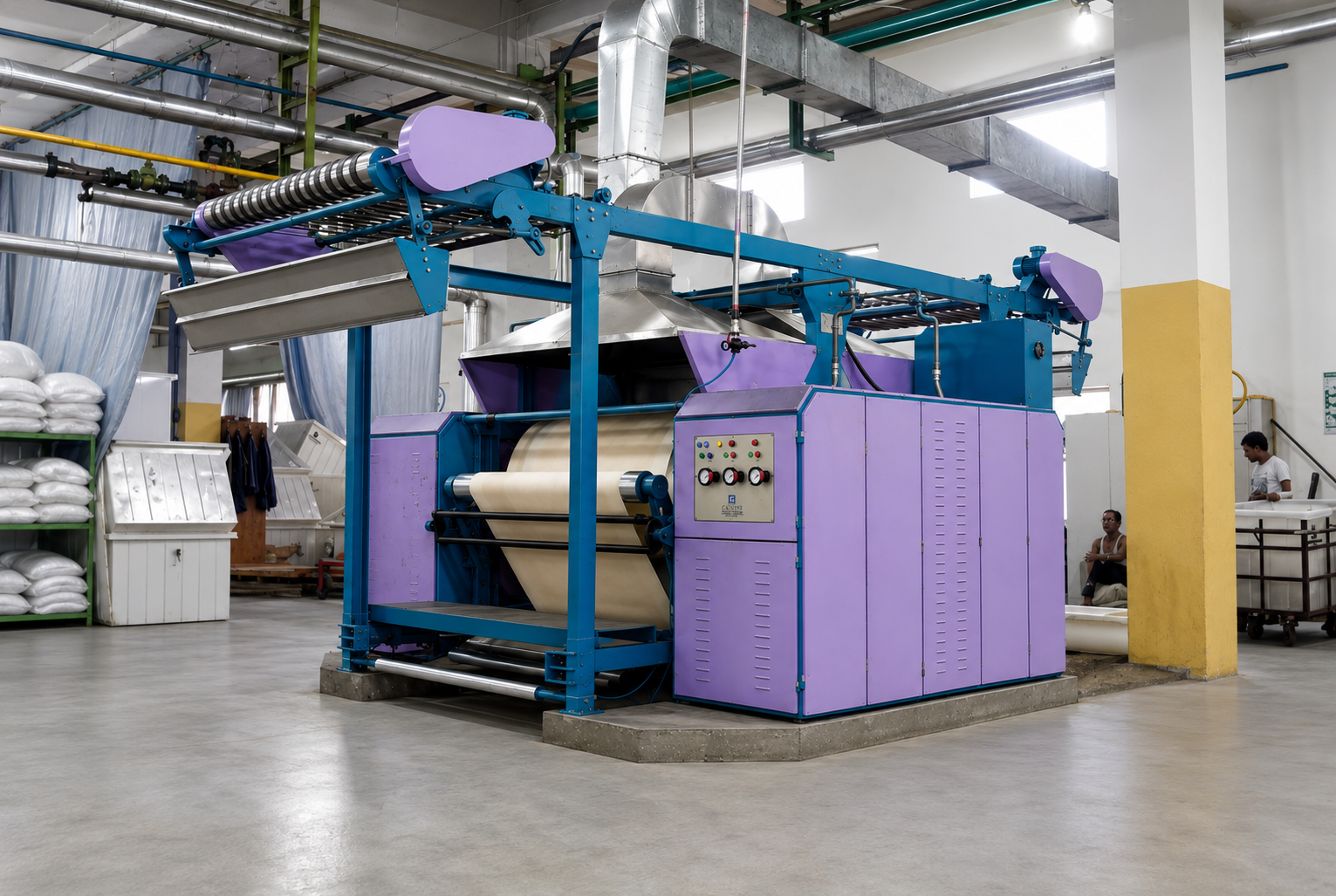

Detail View

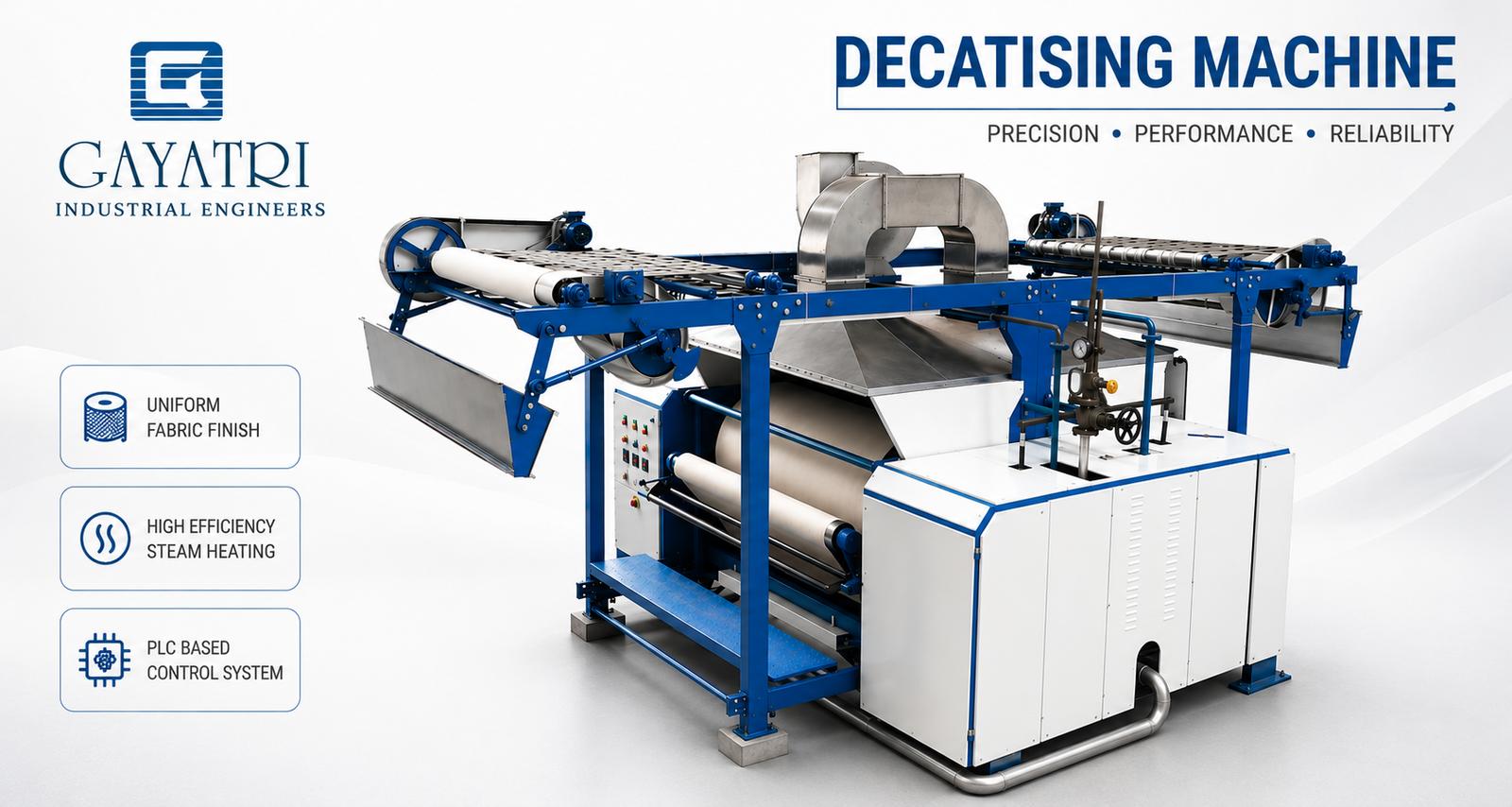

In Operation
01 / 04


Premium Industrial Equipment




Decatising
Machine

Engineered to the highest standards of textile finishing, our Decatising Machine delivers unrivalled surface stability, superior fabric smoothness, and consistently repeatable cycles—combining hydraulic precision with 316L stainless‑steel craftsmanship.

Get Quotation
Key Features

Built for Excellence

01
Uniform Pressure Finish.
02
Condensation-Free Operation.
03
Precision Tension Control.
04
Advanced Hydraulic Drive.
Salient Features

Technical Specifications

  • Main Perforated Cylinders: Two main stainless steel perforated cylinders of 600 mm. / 800 mm dia. fabricated out of 316L stainless steel perforated plates mounted on ball bearings fitted with nozzles to avoid condensation
  • Wrapper Drying Cylinder: An extra stainless steel cylinder of 300 mm dia. for drying the wrapper. This cylinder has a temperature Controller to control steam and to avoid damage to the wrapper.
  • Hard-Chrome Plated Rolls: Two M.S. hard-chrome plated rolls with both the cylinders, to keep the marks fully pressed without creasing, while feeding it to the main cylinders. Pneumatic cylinders are provided to adjust the pressure and tension of the fabric.
  • Wrapper Centering Roll: One suitable roll with feeler switch to maintain properly the center of the wrapper.
  • Plating Down Arrangement: Gear motor-driven system with picking arrangement for handling fabric without tension, ensuring zero damage during processing.
  • Main Drive Motor: A 5 H.P. A.C. Electric Motor (for main cylinders) with pneumatic torque clutch and brake, for easy control of wrapper tension and uniform surface speed.
  • Hydraulic Main Drive System: Advanced hydraulic drive option with hydraulic motors and power pack, replacing conventional clutch and gear systems for smoother, more reliable operation.
Precision
Engineering
Key Technical Data
Main Cylinder Diameter
600 mm / 800 mm
Wrapper Drying Cylinder
300 mm dia.
Material Grade
316L Stainless
Main Drive Power
5 H.P. A.C. Motor
Vacuum Pump
5 H.P. Output
Drive System
Hydraulic / Clutch / Chain

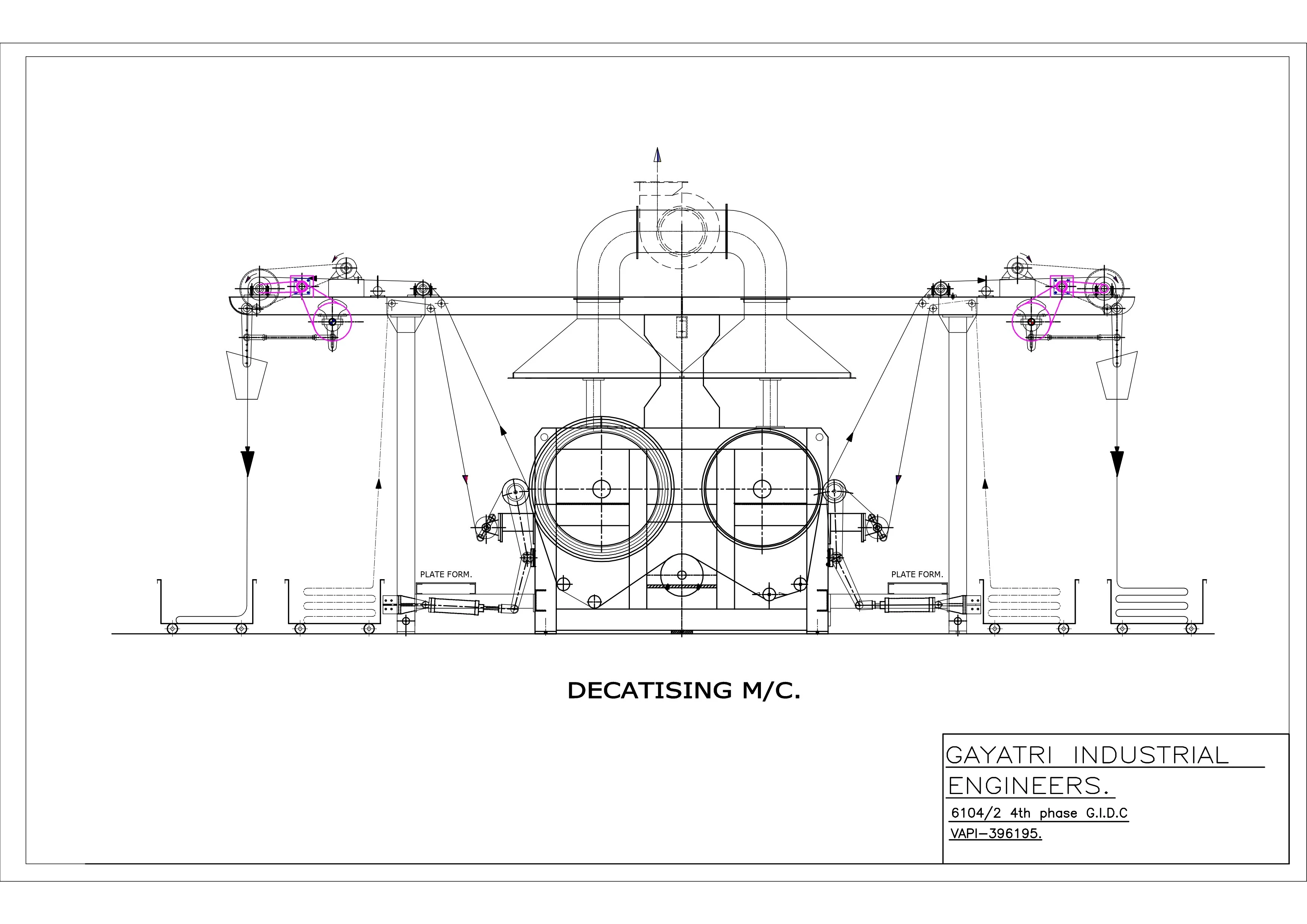

Technical Diagrams

Internal Mechanisms

Wrapper Tension Control
Wrapper Tension Control
In Operation

Machine in Action

Outstanding Advantages

Why Choose
Our Machine?

Decades of textile engineering expertise embedded in every component. From advanced tension control to energy-efficient hydraulic drives, every advantage is designed to elevate your production quality.

08
Engineering Advantages
  • 01
    Superior Uniform Fabric Finishing
  • 02
    Lower Heat and Energy Consumption.
  • 03
    Condensation-Free Steam Processing.
  • 04
    Advanced Wrapper Protection System.
  • 05
    Crease-Free Fabric Handling System.
  • 06
    Advance Wrapper Centering Control.
  • 07
    Efficient Vacuuming System.
  • 08
    Smooth Hydraulic Drive Technology.
