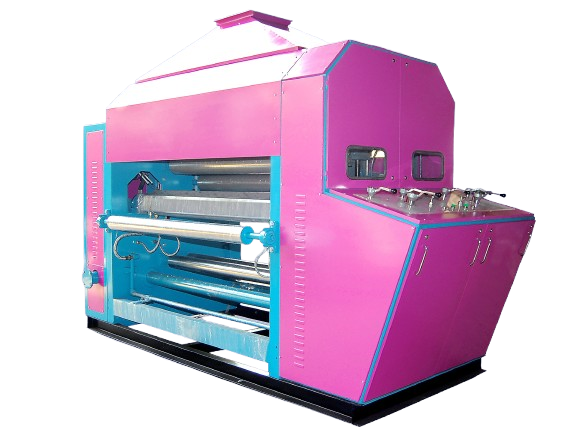

Front View

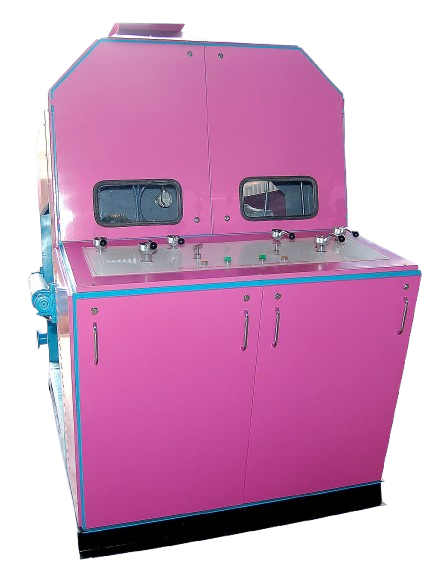

Side View

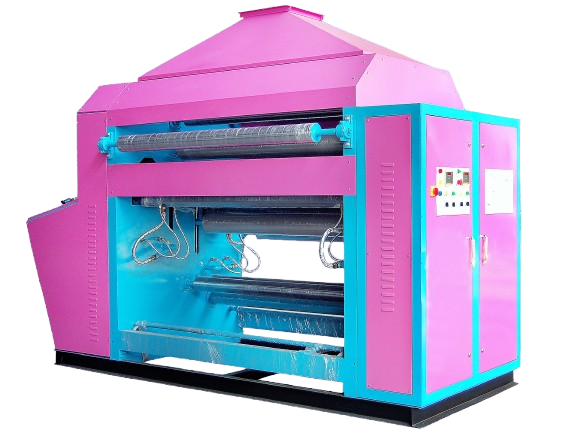

Detail View
In Operation
In Operation
In Operation
In Operation
01 / 04


Advanced Gas Singeing Solutions

Gas Singeing
Machine

Gayatri's Gas Singeing Machine combines a Ceramic Double-Jet burner with a dust-free fabric entry system and automatic flame-width adjustment—delivering a high-intensity blue flame for flawless singeing of natural, regenerated and synthetic fabrics.

Get Quotation
Key Features

Built for Excellence

01
Controlled Combustion
The constantly evolved Ceremic Double-Jet slot burner ensures a homogenous, high-intensity blue flame for precision singeing of all fabrics types.
02
Dust-Free fabric Entry
2 or 4 roll brushing and beating units with a sealed extraction chamber remove surface dust before singeing for a pristine finish.
03
Auto Flame Width Adjustment
Flame width and intensity are automatically set to match fabric width via integrated proportional mixing valves—conserving energy on every run.
04
High-Speed Impregnation
Impregnation compartments with externally ball-bearing mounted rollers support speeds up to 120 mtr/min, unaffected by threads or process chemicals.
Salient Features

Technical Specifications

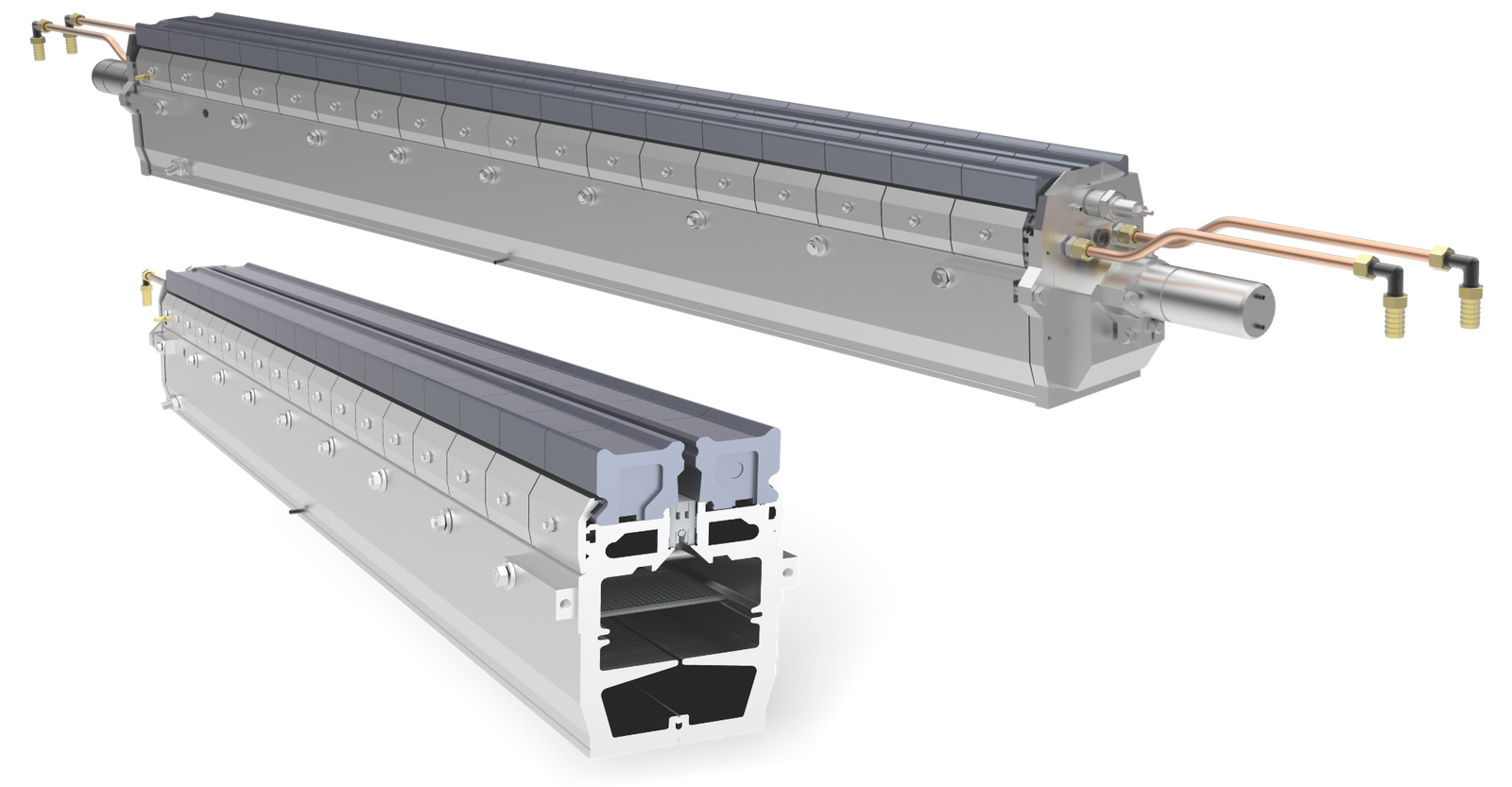

  • Ceremic Double-Jet Slot Burner : Double-jet burner mounted with ceramic bricks and a heavy-duty aluminum alloy body construction. Designed for durability and superior performance, the burner produces a uniform, high-intensity blue flame, ensuring precise and consistent singeing across all types of fabrics.
  • Brushing / Beating Unit: 2 or 4 roll dust-free fabric entry system with closed extraction chamber and fully sealed entrance section; brushes or beaters on both sides with adjustable fabric contact from zero to maximum.
  • Proportional Mixing Valves: Guarantees a constant gas:air ratio independent of feed volume, ensuring flame quality consistency across all production speeds.
  • Singeing Positions: Different singeing positions can be achieved according to fabric quality, including Tangential Singeing, Singeing on Water-Cooled Roller, and Singeing on Free Guided Fabric.
  • Impregnation Compartment: Available in 10, 15 and 21 meter fabric capacity. Upper and lower rollers fitted externally with ball bearings; high speed up to 120 mtr/min with two-roller squeeze mangles at exit.
  • Fabric Delivery Options: Batchers and plaiters synchronised with the singeing process speed for smooth and uniform fabric handling.
  • Safety Compliance: Conforms to the strictest international safety regulations.
Precision
Engineering
Key Technical Data
Burner Type
Ceremic Double-Jet
Max Processing Speed
120 mtr / min
Impregnation Capacity
10 / 15 / 21 m
Singeing Positions
Free-guided / Roller
Brushing Unit Rolls
2 or 4 Roll
Flame Control
Auto Width + Intensity
Burner Configuration

Burner Configuration & Singeing Positions

Three optimized burner positions allow the machine to achieve different singeing effects depending on the fabric construction and fiber composition.

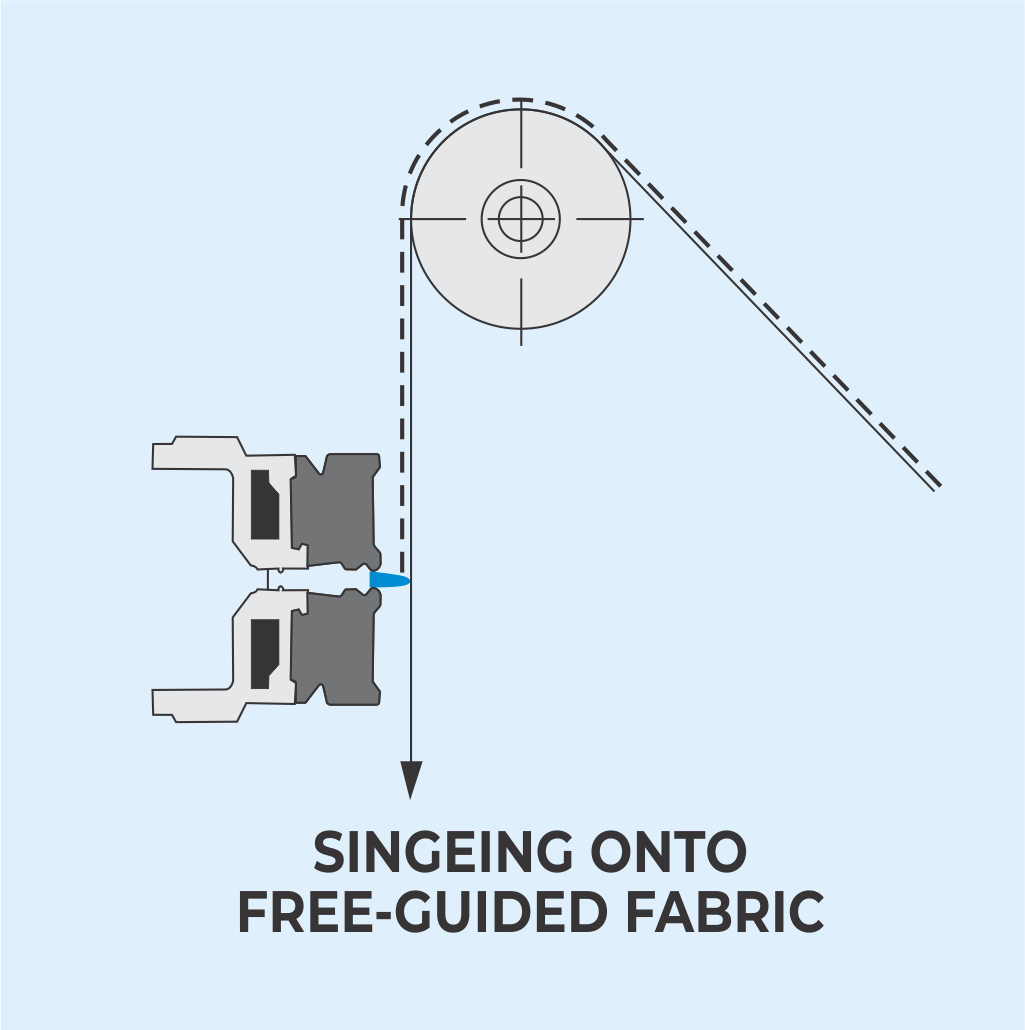

Singeing on to the Free Guided Fabric

Singeing on to the Free Guided Fabric

In this position the burner flame bounces rectangular on the freely guided fabric. It is therefore possible to obtain the most intensive singeing in this position. The singeing results are of very high efficiency and hence this position is suitable for fabrics manufactured out of natural and regenerated fibers as also for heavy material made from all type of fibers..

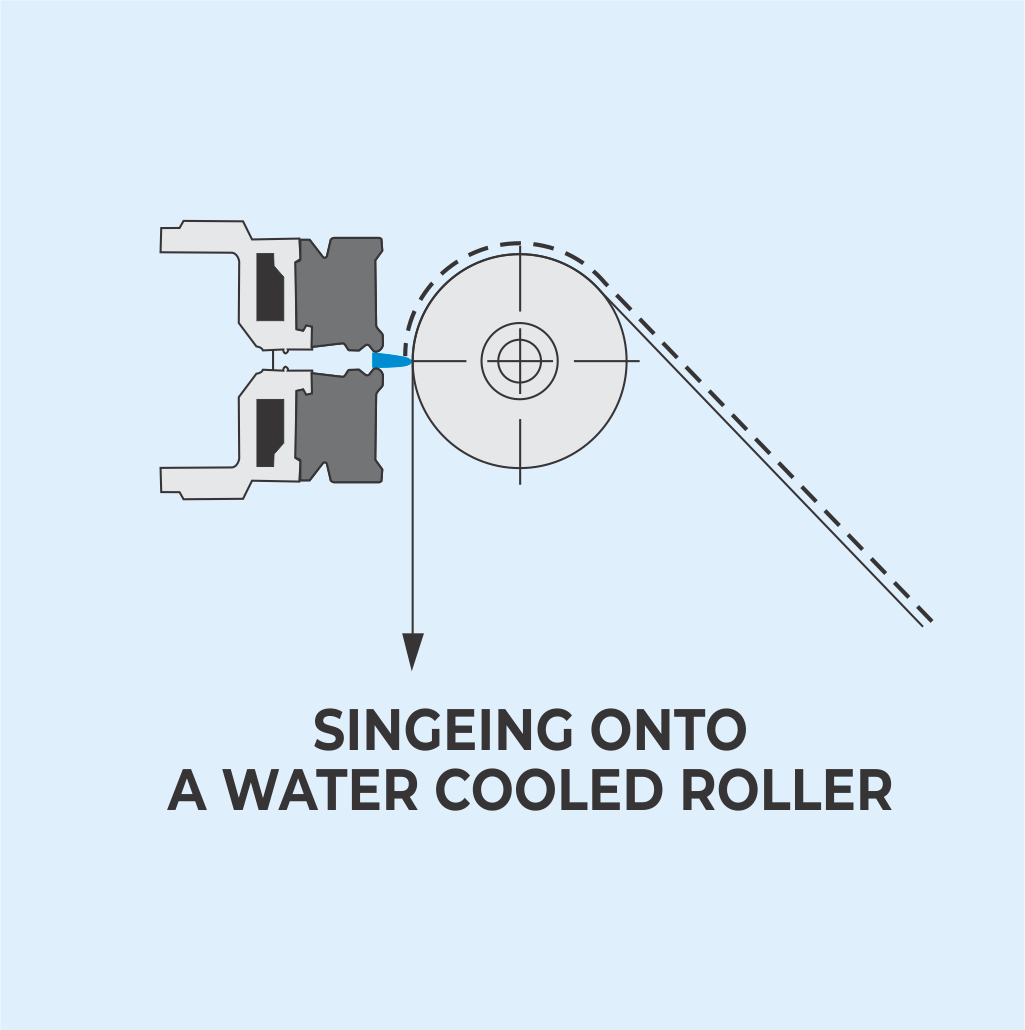

Singeing on to a Water Cooled Roller

Singeing on to a Water Cooled Roller

The flame in this position bounces on the fabric at right angle i.e. in 90° angle. The fabric is guided on a water cooled roller avoiding penetration of the flame in to the fabric. The fabric remains cool comparatively during the singeing process and thus thermal damages of temperature ]sensitive synthetic fibers are eliminated. This singeing position is specially recommended for all blended and synthetic fabric as well as for fabric having open structure.

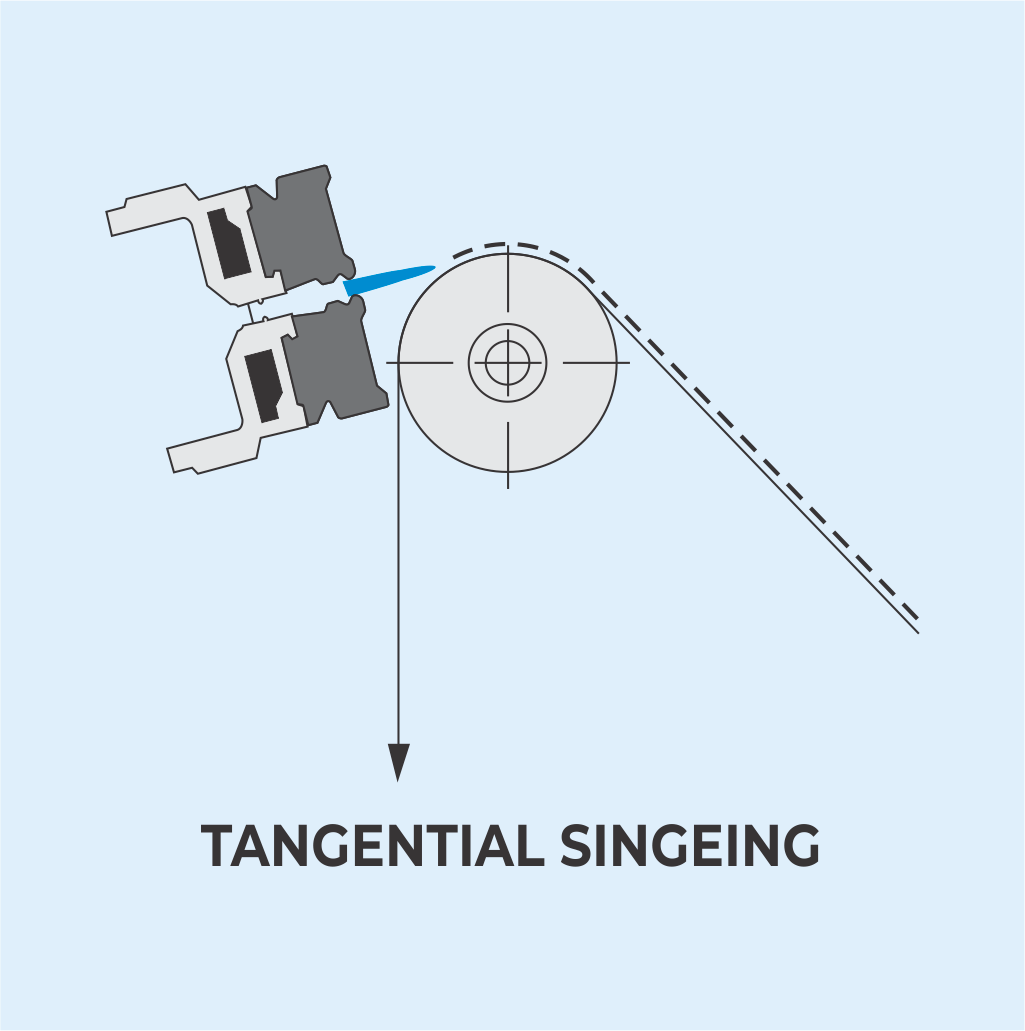

Tangential Singeing

Tangential Singeing

The singeing flame touches the passing fabric only tangentially the flame attacks only the fiber ends which are protruding out of the fabric surface. This position is especially suitable for singeing of lightweight materials and heat sensitive fabrics as well as for leveling of fabrics with broken filaments synthetic cloth.

Technical Diagrams

Internal Mechanisms

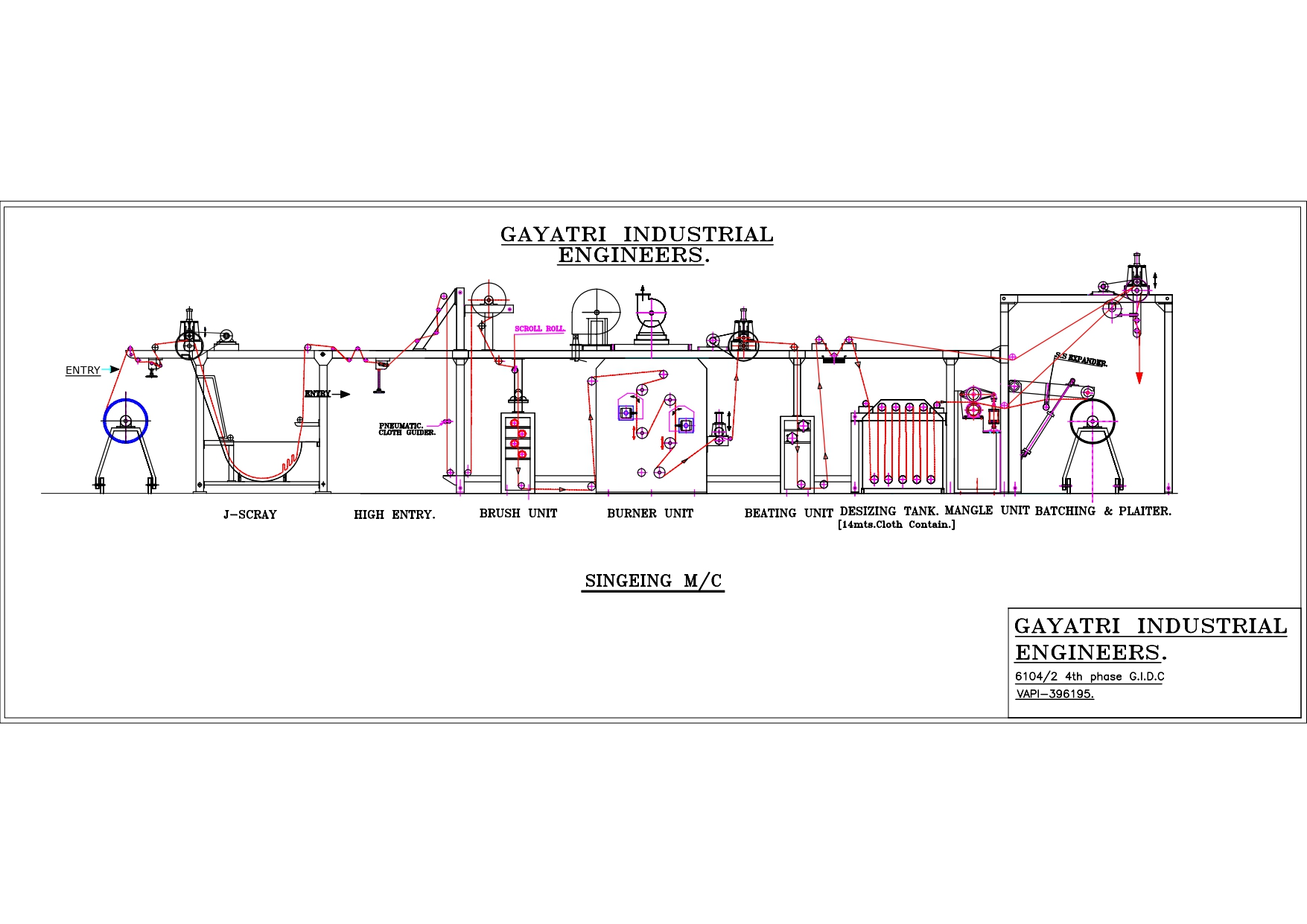

Brushing and Beating Unit
Impregnation Compartment

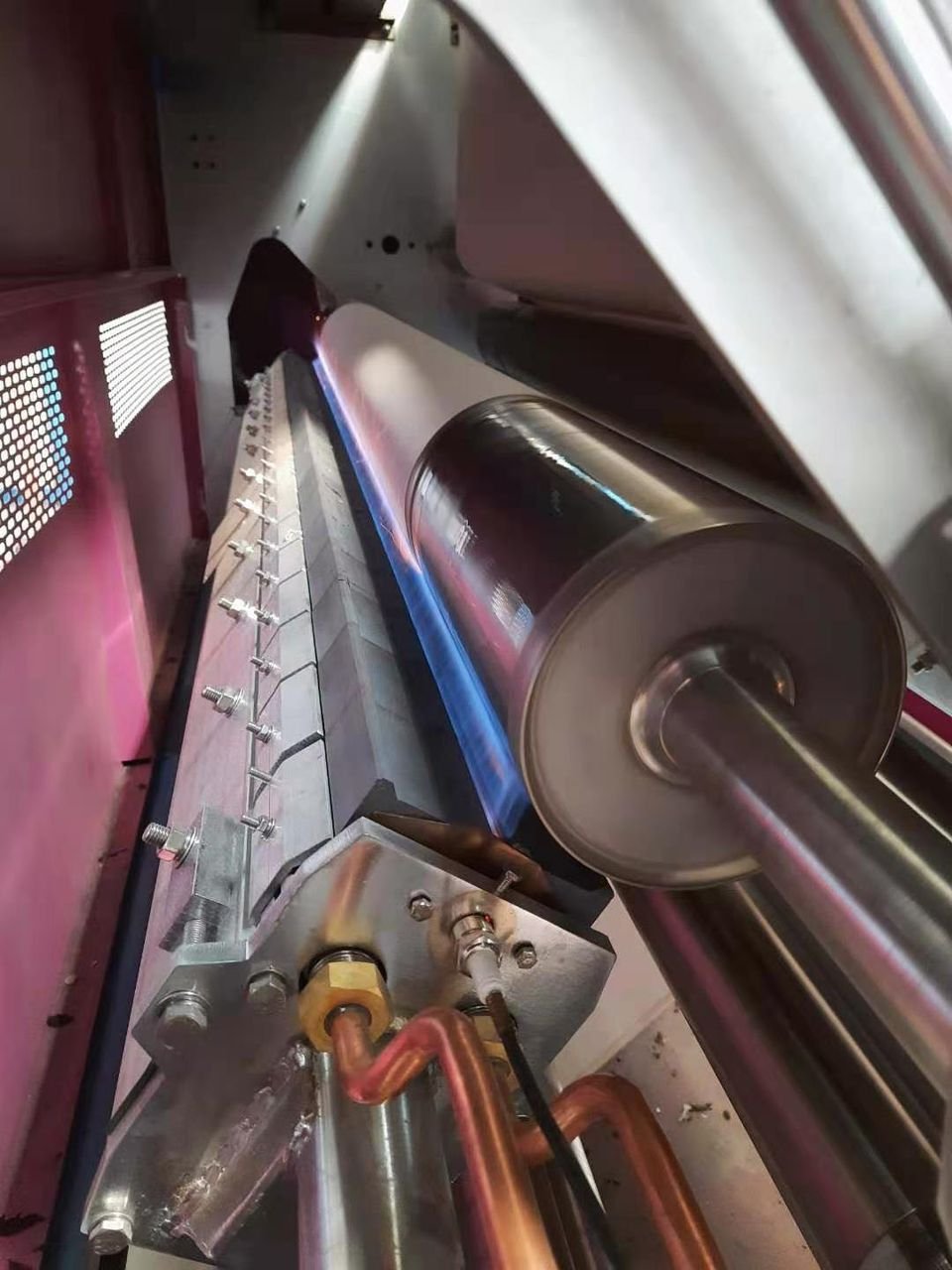

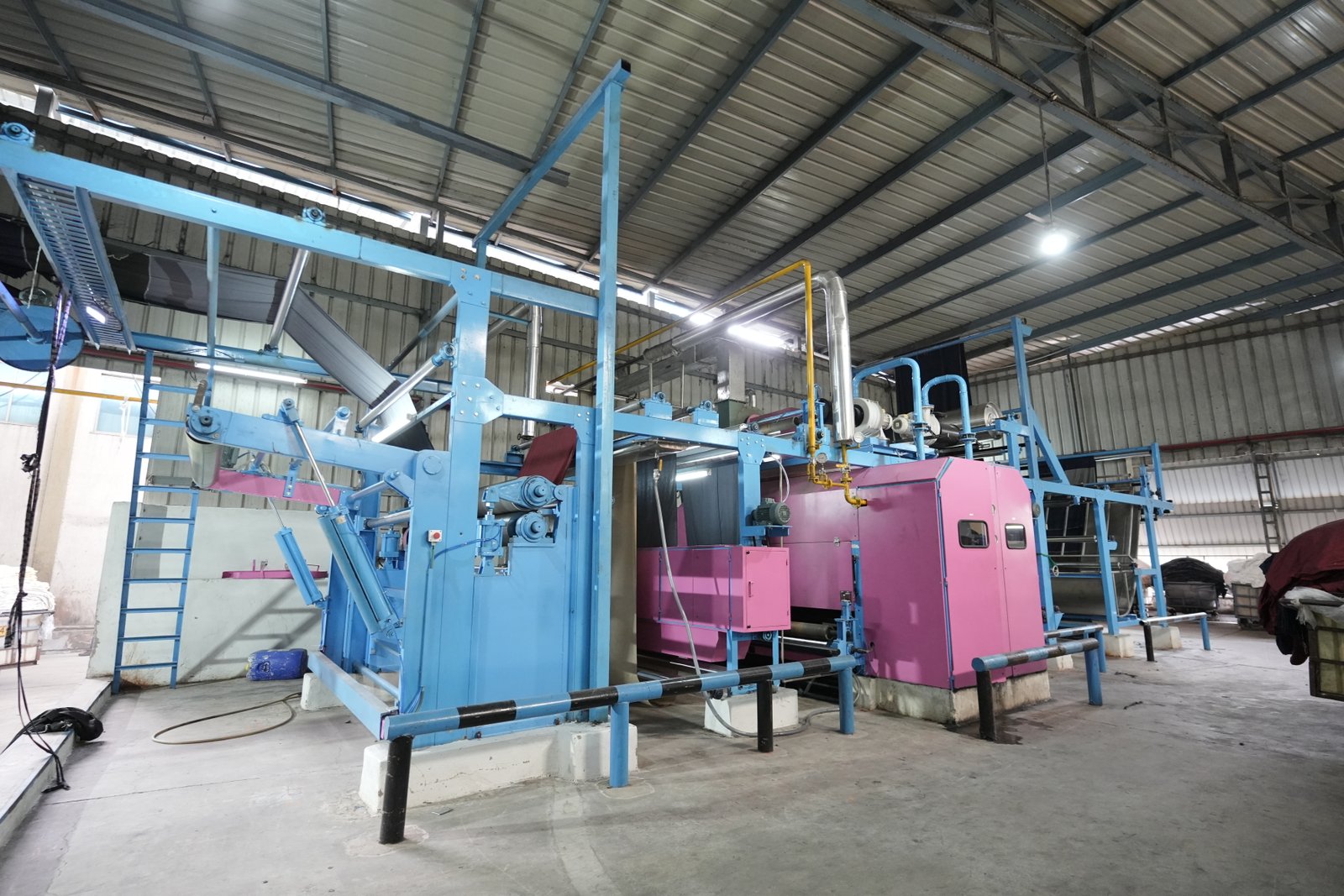

In Operation

Machine in Action

Outstanding Advantages

Why Choose
Our Machine?

Decades of textile engineering expertise are built into every burner, valve, and safety system. From advanced combustion technology to intelligent energy-saving features, every element is engineered to deliver superior fabric finishing performance and consistent quality.

08
Engineering Advantages
  • 01
    High-intensity uniform blue flame technology.
  • 02
    Heavy-duty aluminum alloy burner construction.
  • 03
    Precision singeing for all fabric types.
  • 04
    Advanced proportional gas-air mixing system.
  • 05
    Multiple singeing positions for versatile processing.
  • 06
    Dust-free brushing and beating arrangement
  • 07
    Smooth synchronized fabric delivery system
  • 08
    Built to international safety standards
