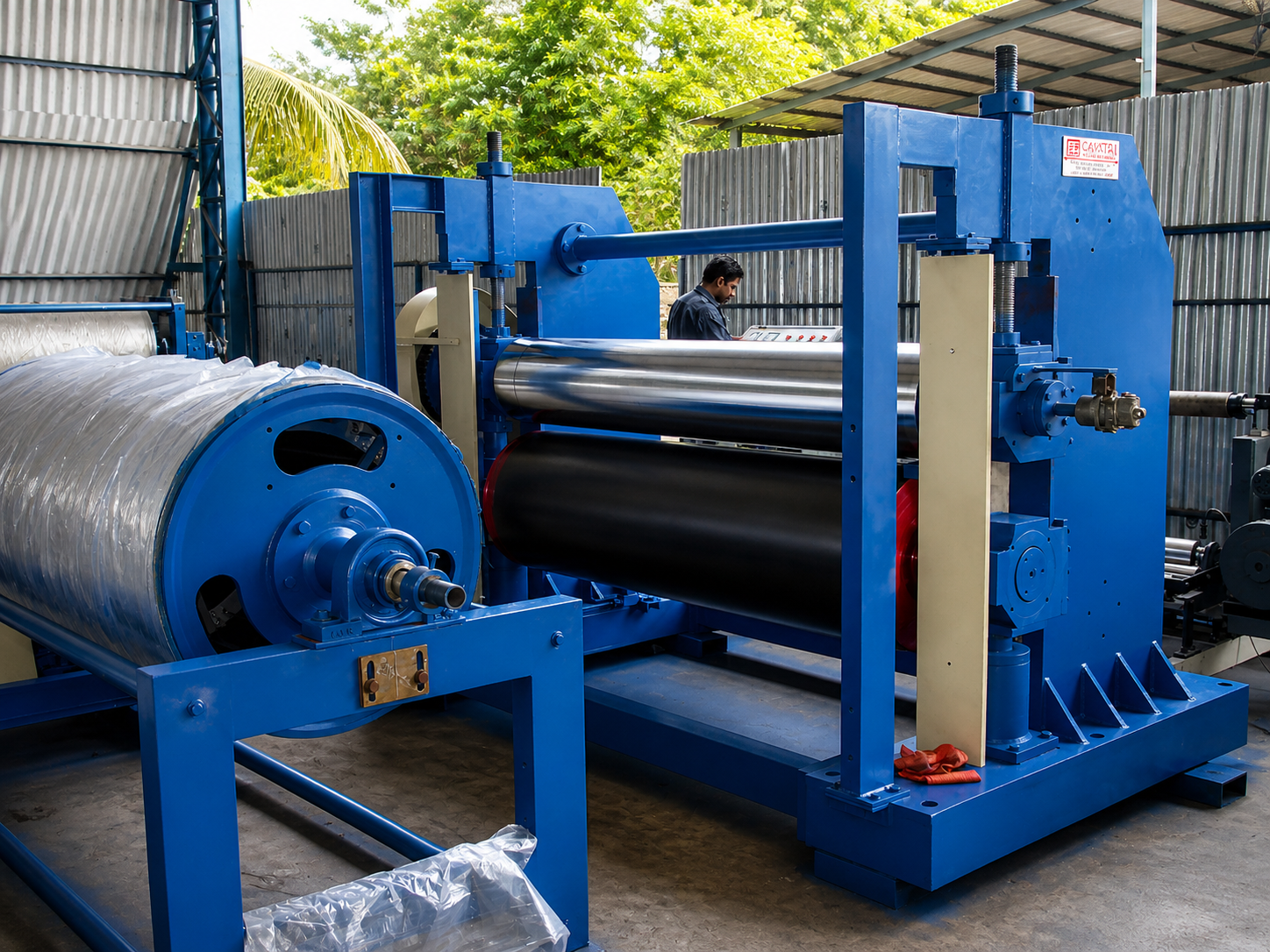

Calander Machine Front View
Calander Machine 5 Bowl Unit
Calander Machine Hydraulic System

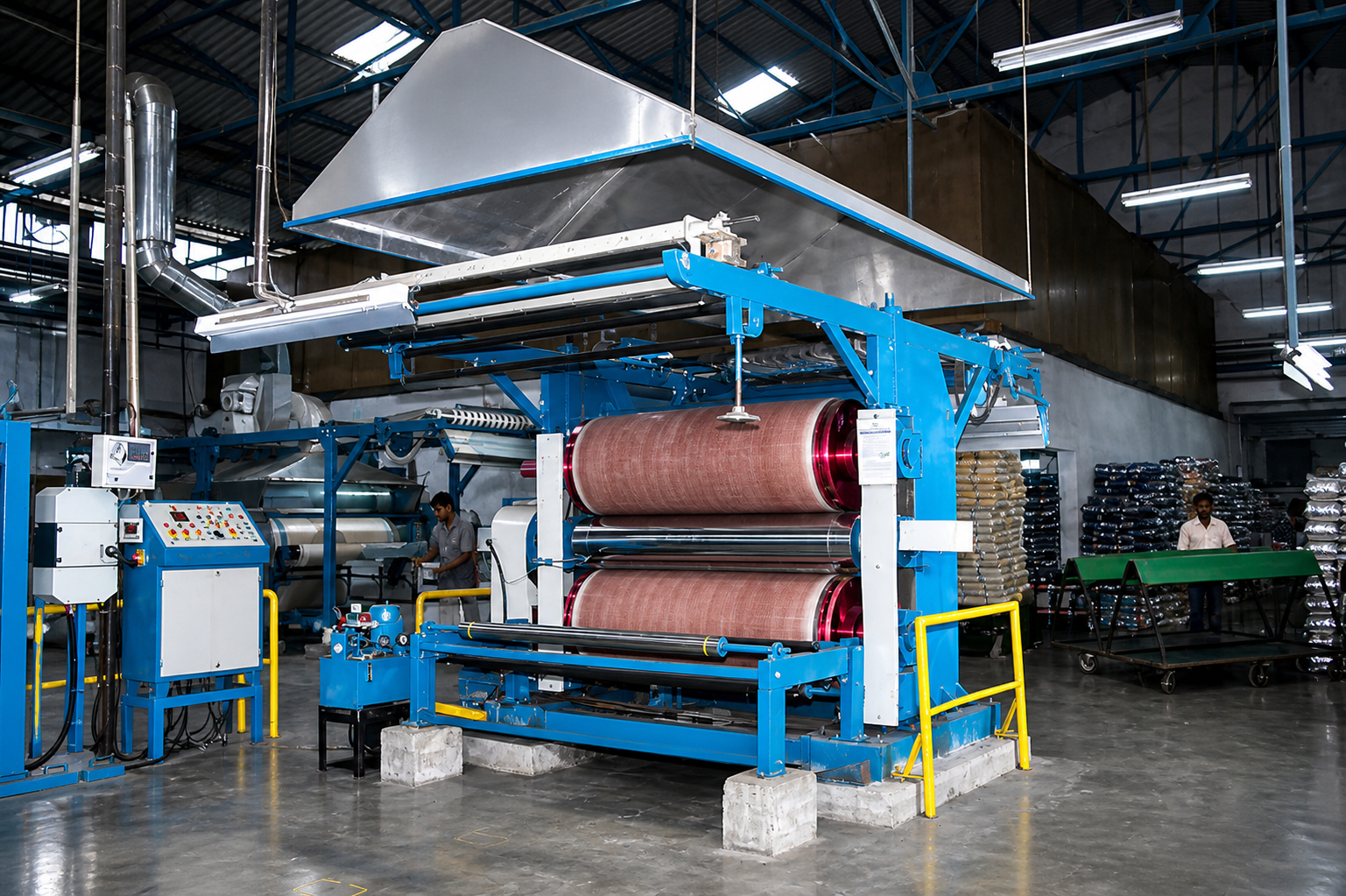

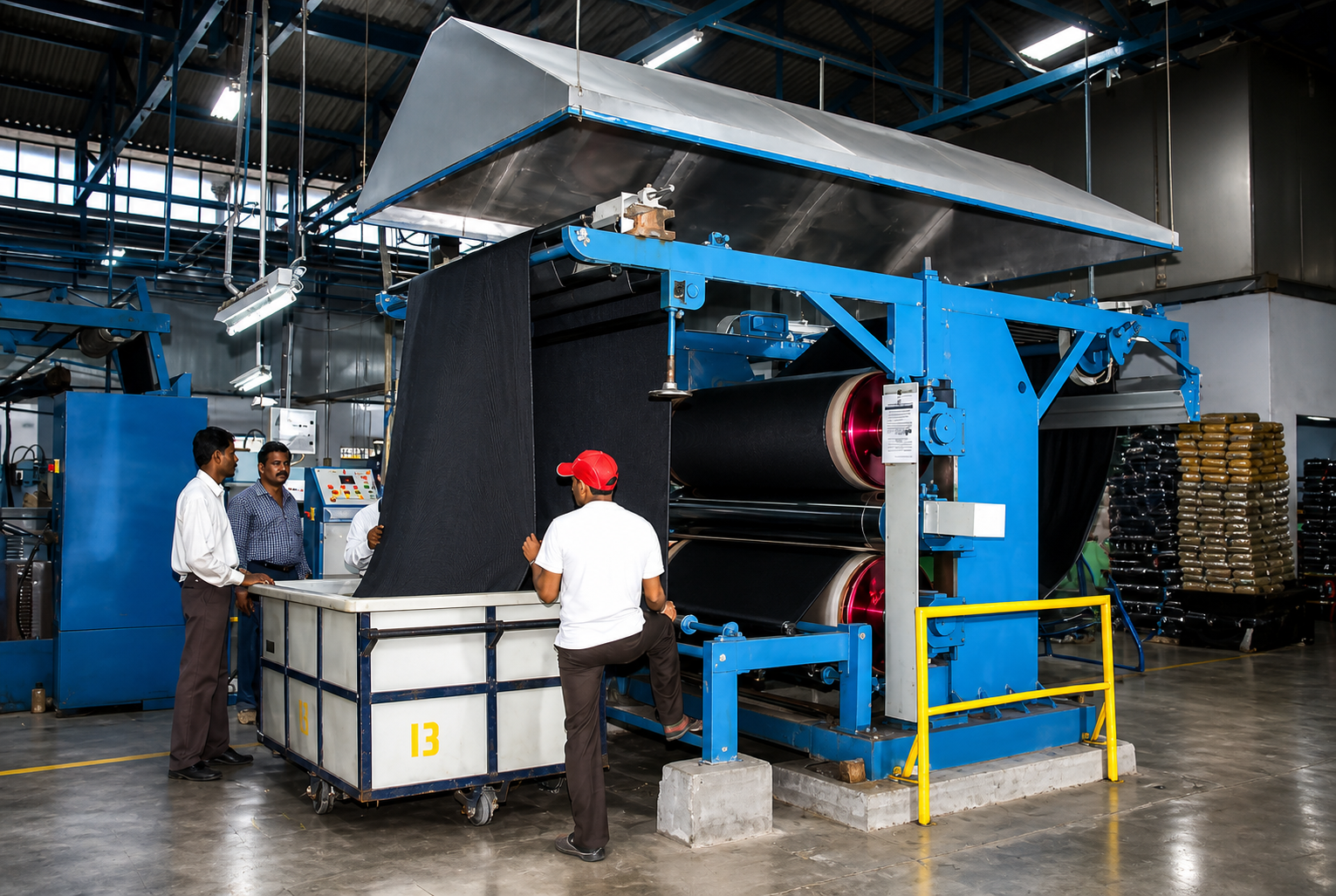

Calander Machine In Operation
Calander Machine In Operation
01 / 05


Calander
Machine

Gayatri's Hydraulic Calander Machine delivers a superior fabric finish with its robust 5-bowl calandering unit, precision hard chromed mirror finished heating rollers, and inverter-driven A.C. motor — engineered for vibration-free, heavy-duty textile processing with complete temperature control.

Get Quotation
Key Features

Built for Excellence

01
5 Bowl Calandering Unit
Three 24″ dia. cotton rolls on taper roller bearings with heavy-duty C.I. housings, hydraulically raised or lowered, combined with two 12″ hard chromed mirror finished heated rollers for precision surface finishing.
02
Multi-Mode Heating System
Oil, steam or electric heating device — selectable to suit the fabric type and process requirement. Internal heating inside each 12″ hard chromed mirror finished roller ensures uniform, controlled heat transfer across the full fabric width.
03
Heavy-Duty Hydraulic System
Two heavy-duty hydraulic cylinders with necessary power pack and electric control panel deliver precise, consistent bowl pressure — allowing the C.I. housings to be raised or lowered effortlessly for different fabric weights.
04
PLC Controlled Inverter Drive & Digital Speed System.
PLC-controlled A.C. motor with inverter drive, worm reduction gearbox, chain drive, and temperature control system integrated into a single smart control panel. Equipped with a digital speed indicator for accurate real-time monitoring and precise process control..
Salient Features

Technical Specifications

  • Main Frame: Strong close-type frame fabricated from 50 mm thick plate, channel and flats — rigidly welded and jointed. Heavy mounting base is vibration-free to withstand heavy loads and for secure mounting of frame and hydraulic cylinders.
  • Entry Section: Fitted with necessary tension bars and swivel tension device, chrome-plated guide rolls to guide the fabric centrally and precisely before entering the calandering unit.
  • 5 Bowl Calandering Unit — Cotton Rolls: Three nos. 24″ dia. cotton rolls on taper roller bearings in heavy-duty C.I. housings. Housings can be raised or lowered by hydraulic cylinders; housing bearings provided throughout.

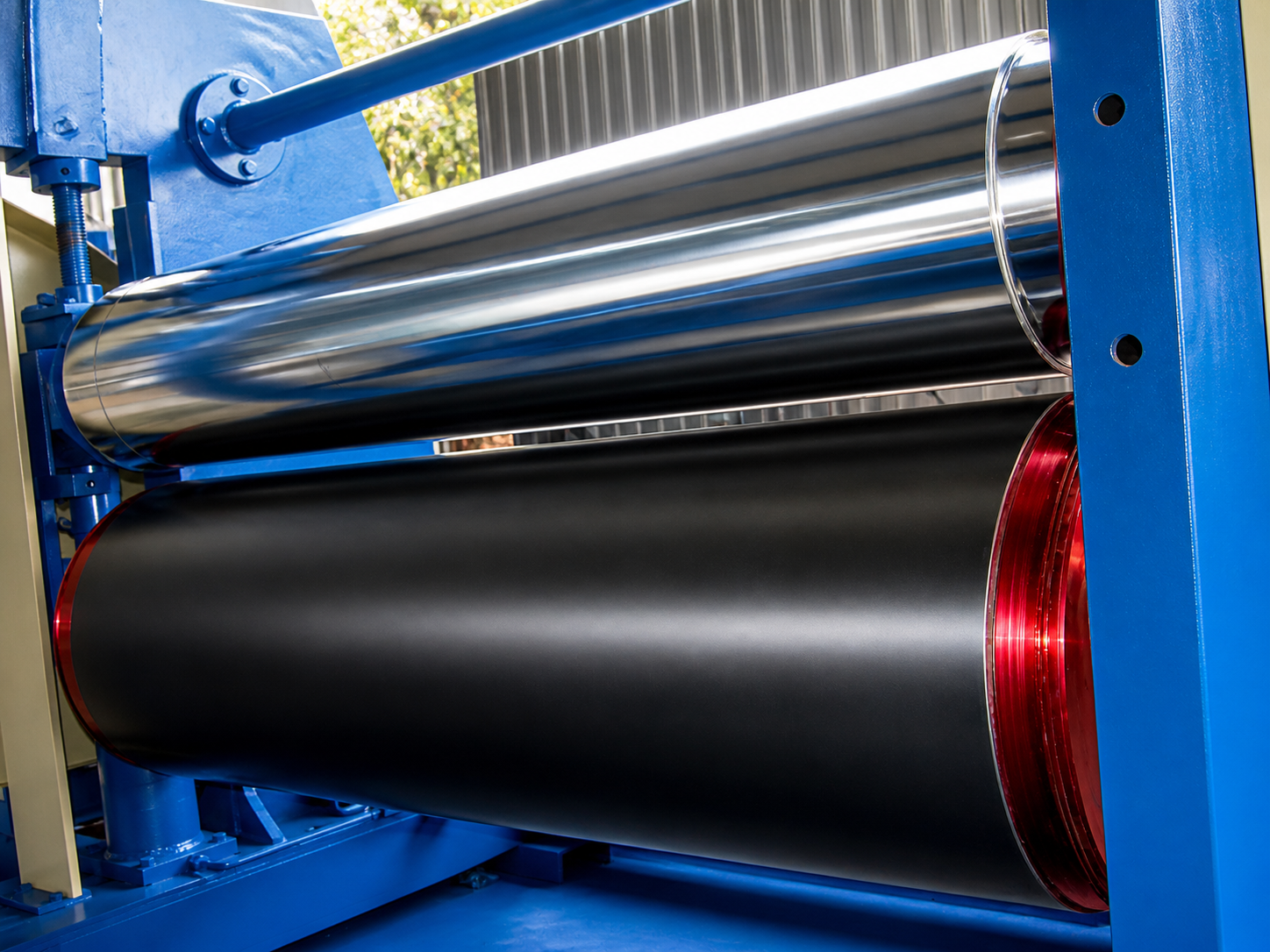

  • Hard Chromed mirror finished Heated Rollers: Two 12″ hard chromed mirror finished rollers on taper roller bearings with housings. Roller surface is ground and hard chromed mirror finished; internal heating system provided.
  • Heating System: Oil, Steam or Electric heating device — selectable to match fabric type and process requirement for optimal surface finish results.
  • Hydraulic System: Two heavy-duty hydraulic cylinders with necessary power pack and electric control panel ensure precise, consistent bowl pressure across the full fabric width.
  • Drive System: A.C. electric motor with suitable worm reduction gearbox, chain wheels and chain. Control panel includes temperature controller and inverter drive for variable speed operation.
  • Digital Speed Indicator: A digital speed indicator provides continuous real-time monitoring of fabric processing speed for precise process control and reproducibility.
  • Fabric Delivery End: Roller-type plaiter with one positively driven draw roll and one rubber pressure roll, plus two guide rolls — ensuring smooth, controlled fabric delivery and stacking at the exit.
Precision
Engineering
Key Technical Data
Calandering Bowls
5 Bowl Unit
Cotton Roll Diameter
24″ (× 3 nos.)
Hard Chrome mirror finished Roll Dia.
12″ (× 2 nos.)
Frame Plate Thickness
50 mm
Heating Options
Oil / Steam / Electric
Hydraulic Cylinders
2 Heavy-Duty
Technical Diagrams

Internal Mechanisms

5 Bowl Calander Unit
5 Bowl Calander Unit

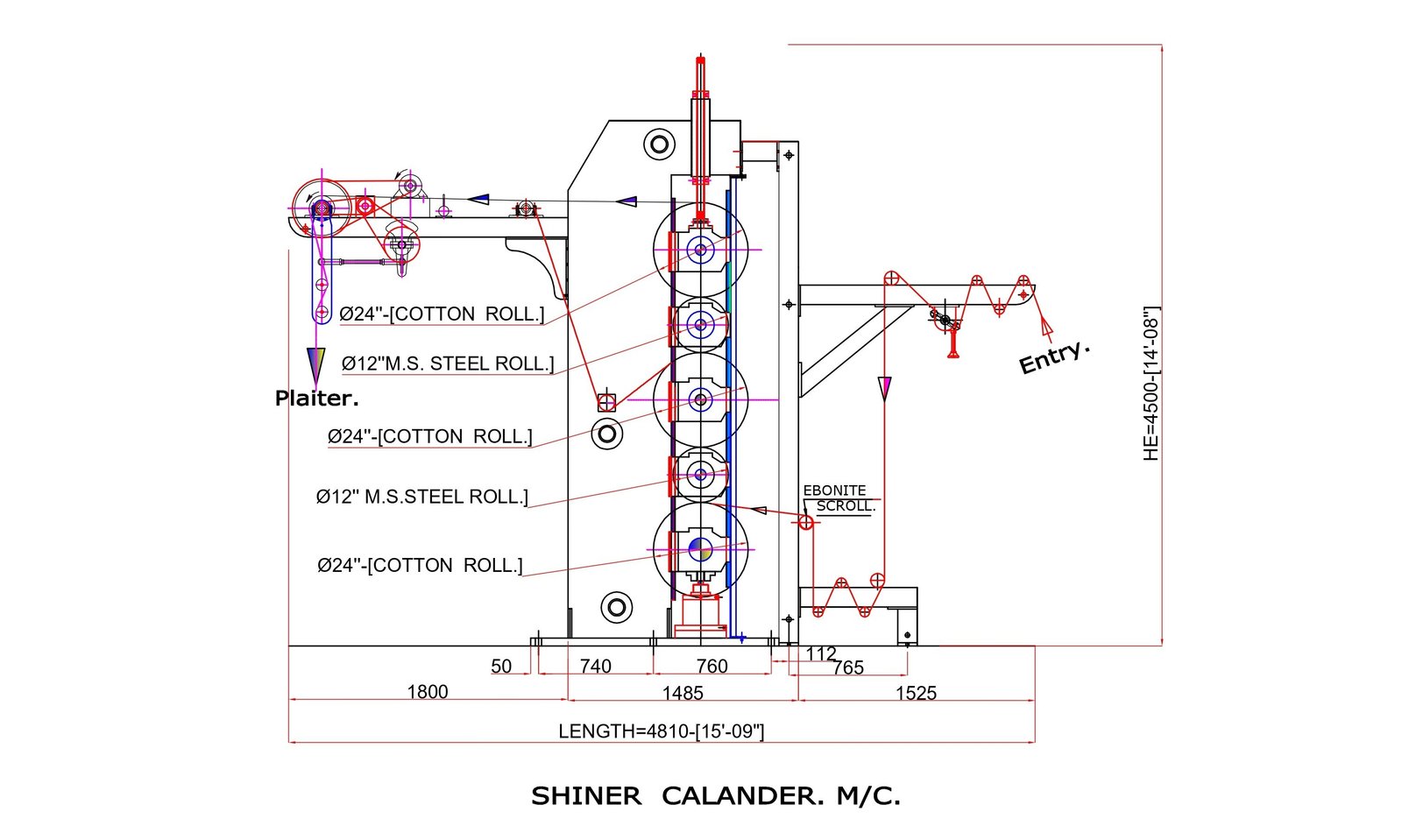

Drive and Delivery End
In Operation

Machine in Action

Outstanding Advantages

Why Choose
Our Machine?

Gayatri's Calander Machine is engineered for heavy-duty reliability and finishing precision — combining a vibration-free 50 mm plate frame, versatile multi-mode heating, and PLC Controlled Inverter Drive for consistently superior fabric surface quality.

08
Engineering Advantages
  • 01
    Heavy-duty vibration-free construction
  • 02
    PLC-controlled system
  • 03
    Superior finish
  • 04
    Uniform hydraulic pressure control
  • 05
    Mirror Finished heated rollers.
  • 06
    Multiple heating options available.
  • 07
    Energy-efficient & low maintenance.
  • 08
    Smooth and tension-free fabric handling.
